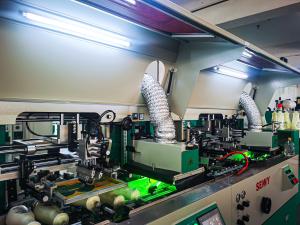

Mechanical Drive Screen Printing Machine On Plastic Wood Ceramics Metal Products

Mechanical Drive Screen Printer Train Bottle Screen Printer Lotion Bottles, Cream Jars In Plastic, Wood, Ceramics, Metal

- The SL1466 is suitable for printing UV inks in various colors on plastic round bottles and jars. The machine is easy to operate and has a fast changeover speed.

- Model SL1488 is suitable for printing UV inks in various colors on plastic round, oval and square bottles. This machine is popular for a wide range of applications.

- The machine is modular, with each module including separate screen printing and UV curing functions, and can be linearly connected to achieve an integrated production line of up to 8 colors.

- The machine can be connected to a foil stamping or labeling module to make a multifunctional printing line with screen printing and foil stamping or labeling.

- The bottle feeding conveyor can be connected directly to the bottle making equipment or to an automatic bottle trimmer to replace manual bottle feeding.

- After printing, the discharge can be connected to bagging machine instead of manual bagging.

SAFE EFFIENCY INNOVATIVE

* SL1488/1788 automatic printing machines for screen printing of containers of plastic or other materials with round, oval, square or rectangular cross-section, with centered or off-center necks.

* Shape changeover: 30 minutes per machine, from cylindrical to oval or flat.

* Linear unit structure combinations: up to 8 inline colors are optional.

* Machine is PLC and touch screen operated for easy operation with excellent alarm system.

* Infeed components include: infeed belt and robot hand for side selection.

* Side-selection mainframe is driven by servo motor for rotary dedusting and flame treatment of round containers.

* Flame treatment for round, oval and rectangular containers.

* Pre-positioning device

* Secondary positioning device for printing.

* Electronic lifting device for squeegees

* UV curing by rotation of round containers driven by stepper motors.

* Electronic UV system: device with freely adjustable light (alternative to LED UV curing systems).

* Auxiliary machine part with optional oval and square container sides

* Output parts: robot hand and belt for standing up containers

* CE compliant.

Technical Specifications:

Printing samples

Exihibition Show

With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
